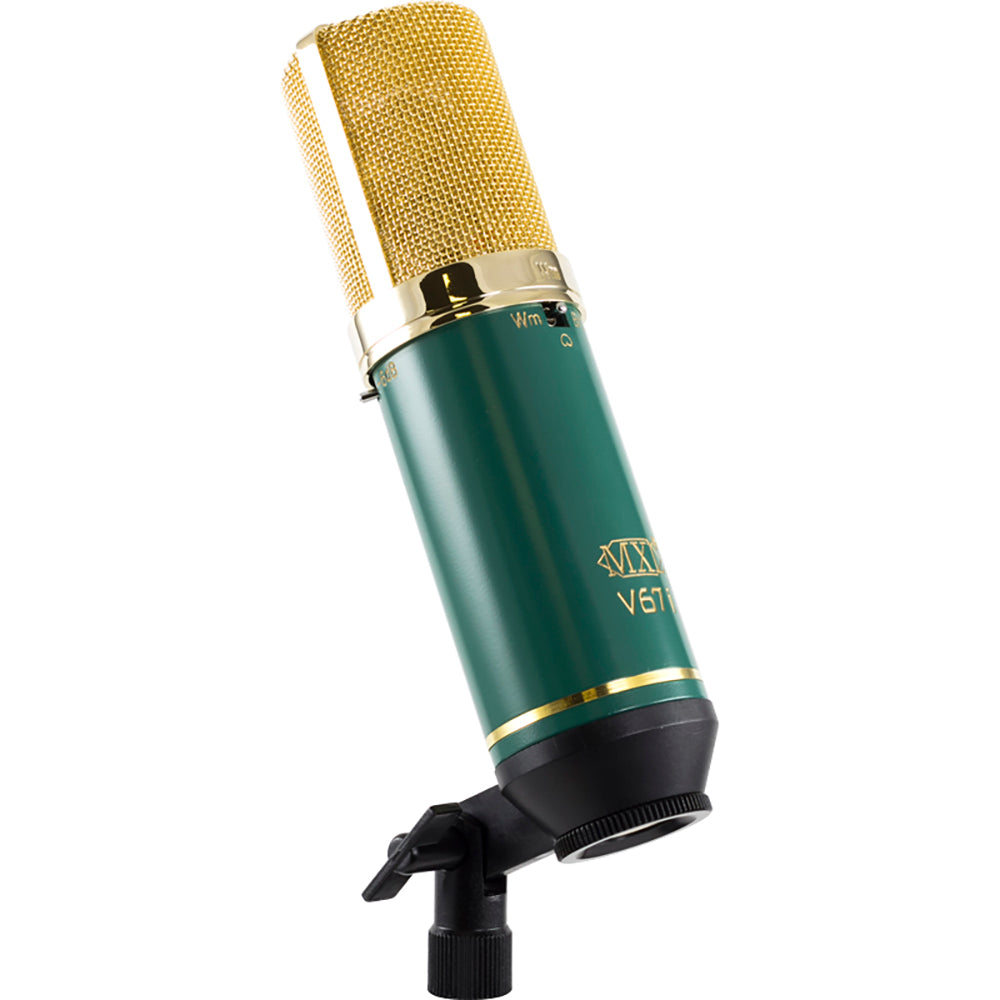

MXL V67i Dual Diaphragm Condenser Microphone
MXL V67i Dual Diaphragm Condenser Microphone

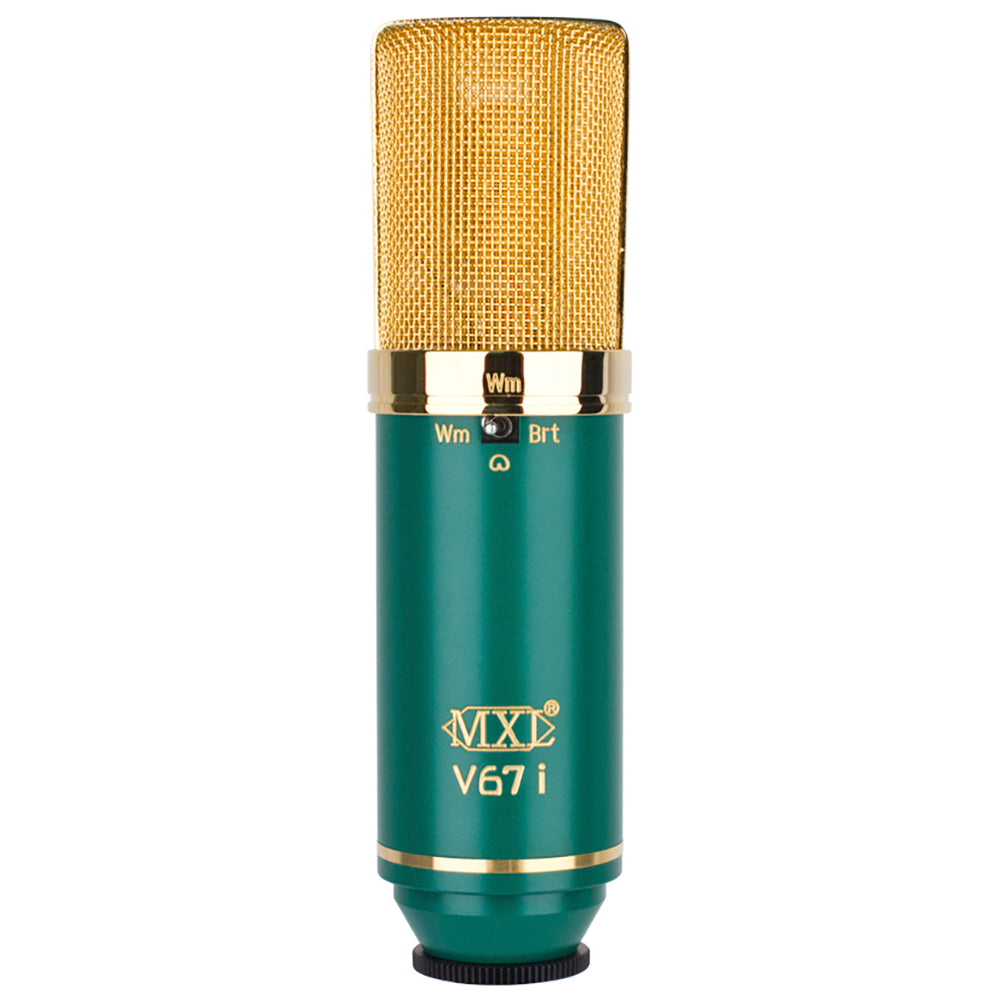

Dual Diaphragm Condenser Microphone. Features two different capsules, one bright and detailed, and the other warm. Convenient switch for capsule selection for greater versatility during recording sessions.
- Ideal for stringed instruments, cymbals, and percussion
- Interchangeable cardioid and omni-directional capsules for flexibility
- Flat response for recordings that are pure and natural
Type
Condenser pressure gradient mic with large 32mm capsule
Diaphragm
32mm / 6 and 8 micron gold-sputtered
Frequency response
20 Hz – 20 kHz
Polar pattern
Cardioid
Sensitivity
22 mV/Pa
Impedance
200 ohms

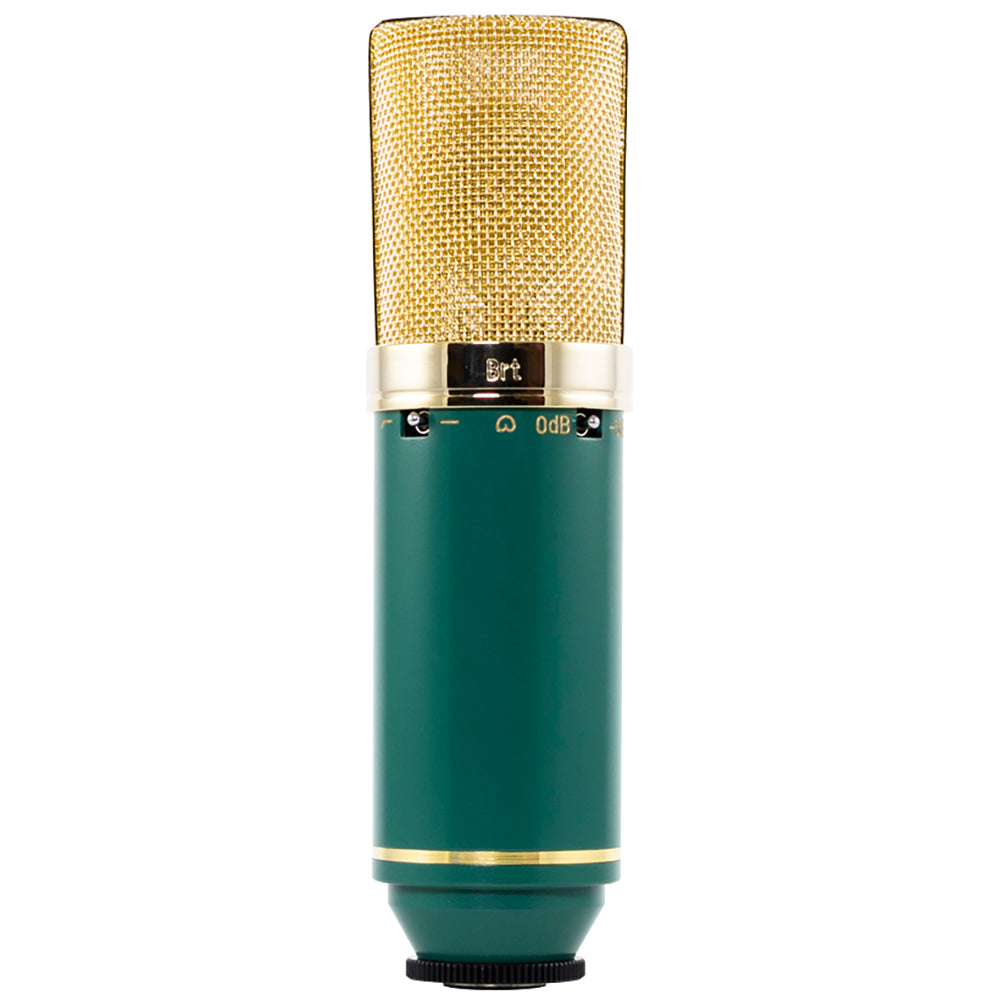

Attenuation switch
0 dB, -6 dB
High pass filter
6 dB/octave @ 150Hz
S/N Ratio
78 dB (Ref. 1 Pa A-weighted)
Equivalent noise
20 dB (A-weighted IEC 268-4)
Max SPL for .5% THD
140 dB
Power requirements
48V Phantom power
Size and weight
47mm x 184mm / 1.85 in. x 7.24 in.
589.67g / 1.3 lbs
Metal finish
Green with gold grill

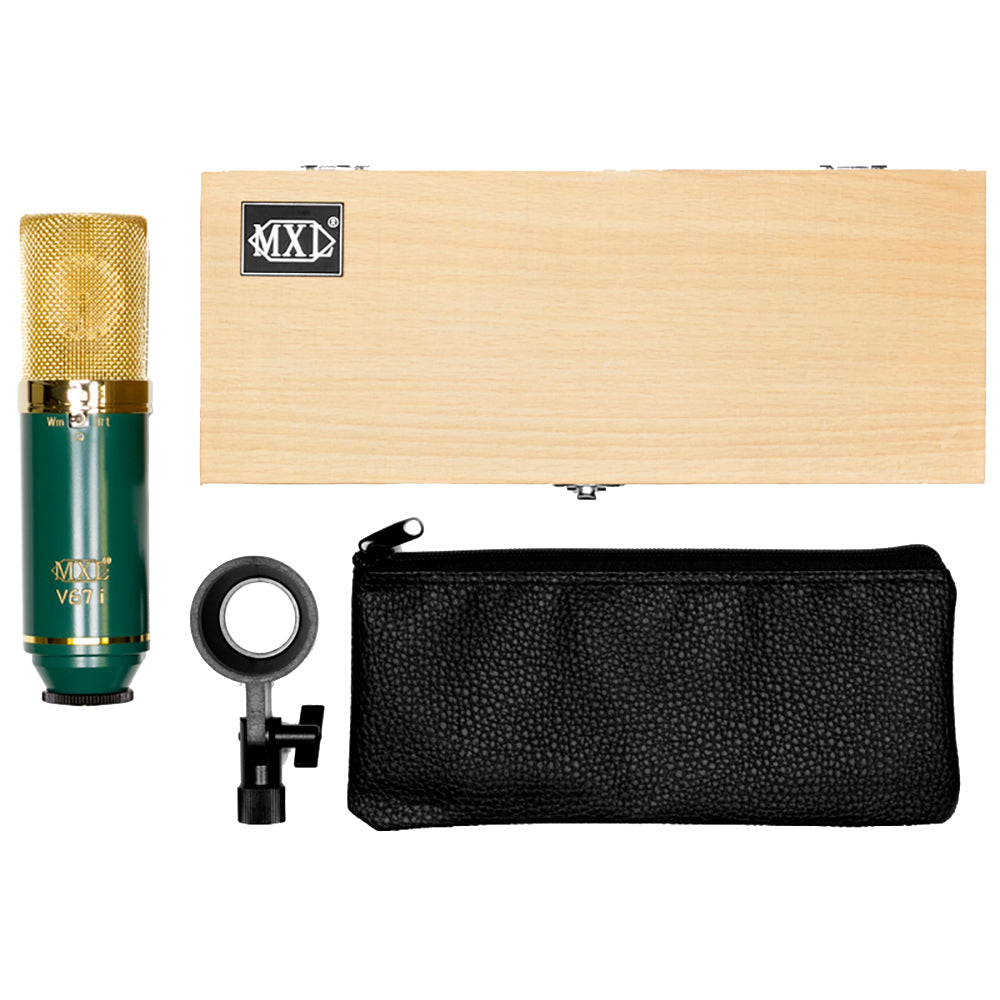

Included accessories
MT-001 hard mount
